Output Plug & Cable

PlugType:PZ1A

Sinpro's switching power supply develops various kinds of output plugs to meet all kinds of applications and equipments. This is why it sometimes occurs the communication problems because we do not have the general description for these different requirements. To reduce the communication mistakes, we set all of the plugs by the different material codes.To all customers: Please note the plugs in blow list do not mean we have them in stock or have the ability to supply them. We only offer this list to be a communication tool for reducing the communication inaccuracy.If you have any question for below list, please do not hesitate to let us know, our sales people will give you the detail answers.Thank you for your concern for our products.


PZ1AComplex Process:
51-03375-01 ; Mating : S.C. #SCN773S3NSNB001G + S.C. #SCN773S4NSNB001G
PZ1BComplex Process:
51-09755-94
PZ1CComplex Process:
2.1*5.5*12mm ; 51-13511-01 ; Mating : S.C. #SCD441CCSO13000,2.0φ
PZ1DComplex Process:
Molex #39-01-2020+39-01-2026 +51-03-00330 ; 51-18938-94
PZ1EComplex Process:
51-18912-94
PZ1FComplex Process:
USB A TYPE & MINI USB
PZ1GComplex Process:
2.5*5.5*9.5mm ; 51-21276-01 ; Mating : S.C. #SCD441DCSO13000,2.5φ

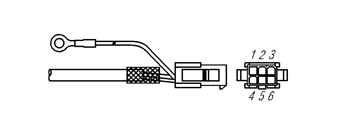

PZ1HComplex Process:
Molex #39-01-2061 *2pcs+Ring Terminal (or local equivalent); Mating : E.C.I. #5016H-6(2*3); terminal : E.C.I. #5016
PZ1JComplex Process:
2.1*5.5*9.5mm *4PCS,51-24667-01 ; Mating : S.C. #SCD441CCSO13000,2.0φ
PZ1KComplex Process:
Molex #39-01-2061+Ring Terminal (or local equivalent) ; Mating : E.C.I. #5016H-6(2*3); terminal : E.C.I. #5016
PZ1LComplex Process:
DINKLE #EC350V-02P , Pitch=3.5mm * 4PCS, Mating : DINKLE #ECH350V-02P
PZ1MComplex Process:
SAM WOO#SNH-10-12(P) , FEMALE , 12PIN ; (Supplied by customer) ; Mating : SAM WOO#SNH-10-12(R)
PZ1NComplex Process:
SAM WOO#SNH-10-12(P) , FEMALE , 12PIN ; (Supplied by customer) ; Mating : SAM WOO#SNH-10-12(R)
PZ1PComplex Process:
2.1*5.5*9.5mm *4PCS , Angle Female Plug , Mating : S.C. #SCD441CCSO13000,2.0φ
