MBU500 series

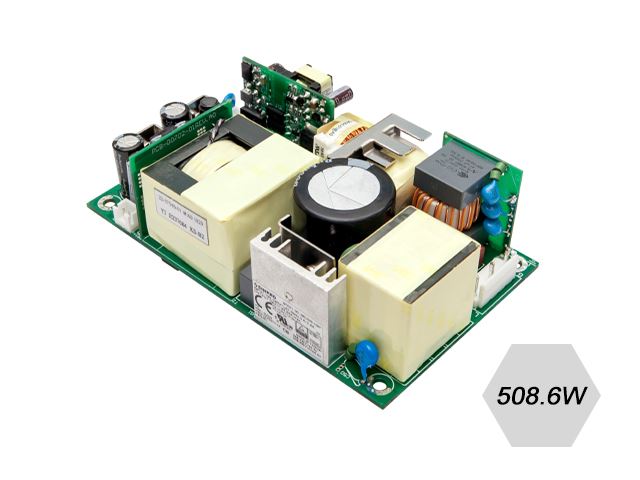

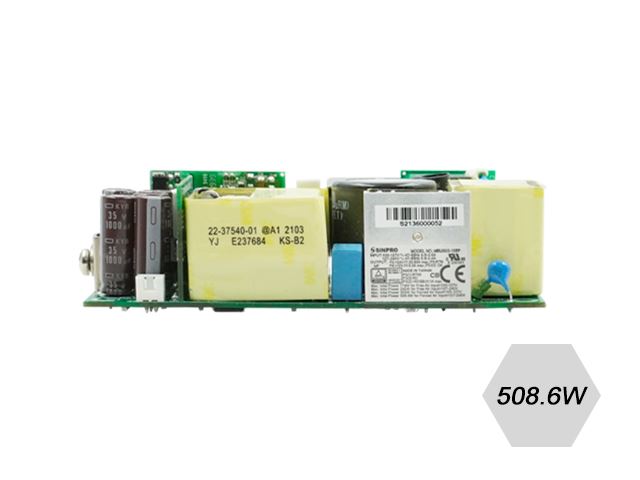

508.6W Medical Open-Frame Switching Power Supplies

● IEC60601-1 Edition 3.1
● Single Output
● Size: 3”x5”x1.38”
● Wide Operating Voltage 90 to 264 VAC, 47 to 63 Hz
● Input to Output: 2MOPP
● High Power Density
● OVP, OLP, OTP, OCP
● Class I
● 5-Year Warranty

Model No. Output Voltage / FAN Output(VDC) Max. Output Current / FAN Output(A) Max. Output Power(W) Safety Approvals
Model No.:MBU500-105(P) Output Voltage / FAN Output(VDC):12.0 / 12.0 Max. Output Current / FAN Output(A):41.67 / 0.3 Max. Output Power(W):508.6 下载 :More
Model No.:MBU500-106(P) Output Voltage / FAN Output(VDC):15.0 / 12.0 Max. Output Current / FAN Output(A):33.33 / 0.3 Max. Output Power(W):508.6 下载 :More
Model No.:MBU500-107(P) Output Voltage / FAN Output(VDC):19.0 / 12.0 Max. Output Current / FAN Output(A):26.31 / 0.3 Max. Output Power(W):508.6 下载 :More
Model No.:MBU500-108(P) Output Voltage / FAN Output(VDC):24.0 / 12.0 Max. Output Current / FAN Output(A):20.83 / 0.3 Max. Output Power(W):508.6 下载 :More
Model No.:MBU500-109(P) Output Voltage / FAN Output(VDC):30.0 / 12.0 Max. Output Current / FAN Output(A):16.66 / 0.3 Max. Output Power(W):508.6 下载 :More
Model No.:MBU500-110(P) Output Voltage / FAN Output(VDC):36.0 / 12.0 Max. Output Current / FAN Output(A):13.88 / 0.3 Max. Output Power(W):508.6 下载 :More
Model No.:MBU500-111(P) Output Voltage / FAN Output(VDC):48.0 / 12.0 Max. Output Current / FAN Output(A):10.41 / 0.3 Max. Output Power(W):508.6 下载 :More
档案类型 档案名称 下载
档案类型:Instruction Manual 档案名称:SINPRO-MBU500-Fan kit Instruction Manual(93-41635-01) 下載 : 下載
档案类型:Safety Certificate 档案名称:SINPRO-MBU500-CB(MED3.1) 下載 : 下載
档案类型:Safety Certificate 档案名称:SINPRO-MBU500-cULus(MED3.1) 下載 : 下載
档案类型:Instruction Manual 档案名称:SINPRO-Instruction Manual(MBU500P)_中文 下載 : 下載
档案类型:Safety Certificate 档案名称:SINPRO-MBU500-CB 下載 : 下載
档案类型:Safety Certificate 档案名称:SINPRO-MBU500-UL 下載 : 下載
档案类型:Safety Certificate 档案名称:SINPRO-MBU500-TUV 下載 : 下載
档案类型:Safety Certificate 档案名称:SINPRO-MBU500-CE 下載 : 下載
档案类型:Datasheet 档案名称:SINPRO-MBU500-DATASHEET 下載 : 下載

Description

The MBU500 series is a family of open frame medical power supplies that are designed to offer 500W continuous output power with a single output of either 12v, 24v, 36v, or 48v (coming with a universal input of 90-264 Vac) at efficiencies up to 92%. The power modules can operate in an operating temperature range of -40 to +70°C with a 5000M altitude operational ability.

The medical power supplies are burn-in test conducted and offer class I operation, low leakage current, overload protection (OLP), overvoltage protection (OVP), over-temperature protection (OTP), and 2 x MOPP (Means of Patient Protection) classification to ensure the safety of the patient, caregiver, and device in which the power supply is installed. The series owns comprehensive protection designs along with all-inclusive safety certifications and conforms to major international safety standards including IEC/ES/EN/CSA C22.2 60601-1. All modules are fully compliant with RoHS directive.

The MBU500 switching power supplies are designed for medical applications and are ideal for ultrasound systems, blood chemistry analyzers, medical imaging equipment, patient monitors, etc.

To find more applications and product details, please click the contact us button below and experience the customized service.

Electrical Characteristics
● Efficiency: 90~92% (typ.)
● Line Regulation: 1% (max.)
● Load Regulation: 3% (max.)
● Hold-Up Time: 12mS (min.) (with 25 CFM forced air)
● Output Ripple and Noise: 1% (typ.)

Environmental

● Operating Temperature: -40 to +70°C
● Storage Temperature: -40 to +85°C
● Operating Humidity: 0~95%
● Storage Humidity: 0~95%
● MTBF: 200,000 calculated hours

*"P" means with standby output : (5V@0.5A) Air convection ; (5V@1A) Forced Air
