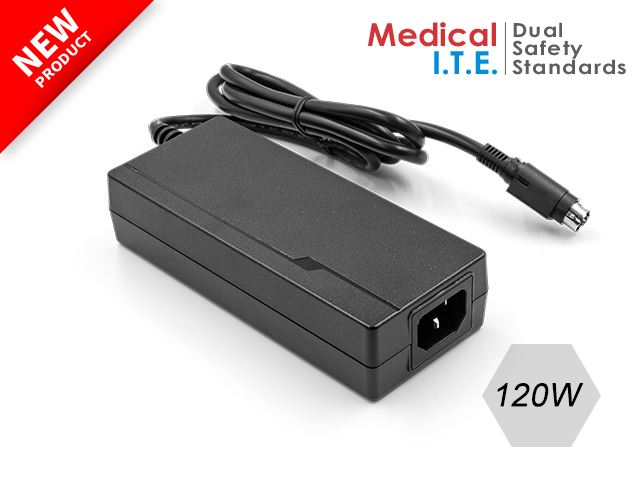

HPA120A

120W Medical & I.T.E. Desktop Switching Power Supplies

● Size: 2.36" x 5.51" x 1.26"
● Safety: 60601 3.2, 62368 2nd, 62368 3rd
● Class I
● Input Voltage Range: 70-264 VAC, 47-63 Hz
● Single Output
● IEC-320-C14 Input Inlet
● Protection: SCP, OLP, OVP, OTP
● Waterproof and Dustproof Degree: IP22
● 2MOPP
● Earth Leakage Current <0.1mA
● Operating Temperature: -40~+70°C
● Operating Altitude: 5000M
● Built-In EMI Filter
● High Surge Immunity
● LED Indicator
● Designed to Meet ISN & 60335
● Suitable for Medical/Healthcare and ITE Equipment
● Suitable for BF Application
● 3-Year Warranty

Optional
● OVC III
● Waterproof and Dustproof Degree: IP54
● Withstand 305VAC Surge Input for 1 Minute

Model No. Output Voltage(VDC) Output Current(A) Max. Output Power(W) Safety Approvals
Model No.:HPA120A-120 Output Voltage(VDC):12 Output Current(A):10.10 Max. Output Power(W):120 下载 :More
Model No.:HPA120A-180 Output Voltage(VDC):18 Output Current(A):6.66 Max. Output Power(W):120 下载 :More
Model No.:HPA120A-190 Output Voltage(VDC):19 Output Current(A):6.31 Max. Output Power(W):120 下载 :More
Model No.:HPA120A-240 Output Voltage(VDC):24 Output Current(A):5.00 Max. Output Power(W):120 下载 :More
Model No.:HPA120A-480 Output Voltage(VDC):48 Output Current(A):2.50 Max. Output Power(W):120 下载 :More
Type File Name Download
Type:3D Outline File Name:SINPRO-HPA120A-3D Outline(PDF) Download : Download
Type:3D Outline File Name:SINPRO-HPA120A-3D Outline(STEP) Download : Download
Description
The HPA120A series is a family of desktop power supplies (external power supplies) that are designed to offer 120W continuous output power with a single output of 12v-48v (coming with a universal input of 70-264 Vac) at efficiencies up to 89% and can operate in an operating temperature range of -40 to +70°C with a 5000M altitude operational ability and IP22/IP54 water and dust resistance standard.

The medical & ITE power supplies are burn-in test conducted and offer class I operation, low leakage current, overload protection (OLP), crowbar mode overvoltage protection (OVP), over temperature protection (OTP), and 2 x MOPP (Means of Patient Protection) classification to ensure the safety of the patient, caregiver, and device to which the power supply is applied. The series owns comprehensive protection designs along with all-inclusive safety certifications and conforms to major international safety standards including IEC/EN/UL/CAN/CSA C22.2 62368-1, and IEC/EN/ANSI/AAMI ES/CSA C22.2 60601-1.

The HPA120A switching power supplies are designed for medical and ITE applications and are ideal for medical tablets, respiratory devices, heart monitors, blood analyzers, vision examiners, protein analyzers, video conferencing systems, printers, video converters, traffic flow monitors, infrared cameras, etc.

The HPA120A series features a type A AC inlet (IEC320 C14); please check the HPA120C series for a type C AC inlet (IEC320 C6).

To find more applications, plug/connector selections, and product details, please click the contact us button below and experience the customized service.

Electrical Characteristics
● Efficiency: 89% (typ.)
● Line Regulation: 0.5% (max.)
● Load Regulation: 4.5% (max.)
● Hold-Up Time: 20mS (min.)
● Output Ripple and Noise: 150mVp-p (max.)

Environmental
● Operating Temperature: -40 to +70°C
   (Derate linearly from 100% load at 40°C to 50% load at 70°C)
● Storage Temperature: -40 to +85°C
● Operating Humidity: 10~95% RH
● Storage Humidity: 0~95% RH
● MTBF: 1,000,000 calculated hours
