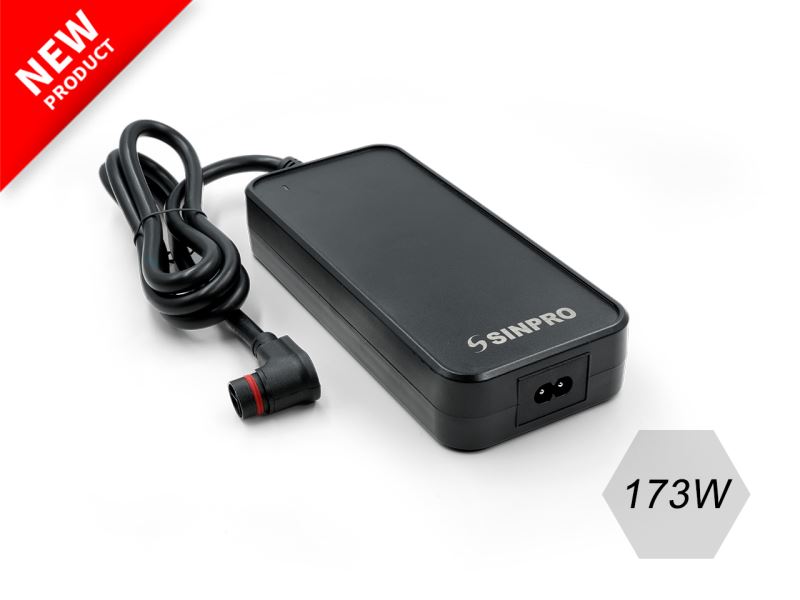

173W Portable EV Smart Charger, Wallbox Charger

● Single Output
● Class II
● Wide Operating Voltage, 90 to 264 VAC, 47 to 63 Hz
● Protection: OVP, UVP, Charging Timing Protection
● Constant Current Protection, Battery Charging Error Protection
● Programable C.V.+C.C.
● 2-Year Warranty

Model No. Setting Voltage Range(VDC) Max. Current(A) Max. Output Power Safety Approvals
Model No.:BPU170-112 Setting Voltage Range(VDC):32~57.4±0.3 Max. Current(A):3.0 Max. Output Power:173 下载 :More
Type File Name Download
Type:Datasheet File Name:SINPRO-BPU170-112-DATASHEET Download : Download
BPU170-112 is a portable EV smart charger with a size of 195.5mm x 86mm x 35.2mm that delivers up to 173W output power at efficiency greater than 90% with a no load power consumption less than 1W. The model accepts a 90-264 VAC input range and a wide operating temperature of -10 to +70°C.
Being a Class II EV charger, BPU170-112 features a comprehensive safety protection design that makes the charger more reliable and durable including OVP (Overvoltage Protection), UVP (Under Voltage Protection), overheating protection, charging timing protection, constant current protection, battery charging error protection, etc. The model meets EN55032 (CISPR32), EN55014, FCC Part-15 class B, CISPR-32 class B emission limits, UL/c-UL, RoHS directive, and so forth. All units are 100% burned in and tested.
The charger can be working in both constant current (CC) as well as the constant voltage (CV) mode, and with optional output connectors, the charger is ideal for EV charging applications.

Electrical Characteristics
● Efficiency: 93% (typ.)
● Line Regulation: 1% (max.)
● Safety Ground Leakage Current: 0.25m/A
● No Load Consumption: 1W

● Operating Temperature: -10 to +70°C
   (Derate linearly from 100% load at 40°C to 50% load at 70°C)
● Storage Temperature: -20 to +60°C
● Operating Humidity: 10~95%
● Storage Humidity: 10~95%
● MTBF: 50,000 calculated hours
