HBA360 360W Medical & I.T.E. Open-Frame Switching Power Supplies

The HBA360 is a high-density 3" × 5" power solution engineered for the most demanding equipment, from Medical (BF) type applications to Industrial OVC III rated systems. It delivers 360W of reliable power with a massive 450W peak capability to handle high-inertia motor loads in surgical displays and stage lighting.

Designed to maximize power density while simplifying safety integration into next-generation compact equipment, the HBA360 is a highly versatile solution. The series features dual medical and ITE approvals with 2 × MOPP isolation, making it ideal for BF-rated medical applications. Additionally, the HBA360 is engineered to meet OVC III, ISN, IEC 60335-1, and 61558-1 standards, allowing for direct connection to building-level power distribution in industrial and household-adjacent environments.

The series delivers a full 360W with forced-air cooling and a reliable 200W via convection. For systems with high-inertia loads, the HBA360 provides robust 450W peak power sustainability. To ensure stable performance in specialized environments, it supports an Operating Altitude of 5000M and includes a comprehensive suite of Protections (SCP, OLP, OVP, and OTP). Available in 12V, 19V, 24V, and 48V VDC output options, the series offers the voltage flexibility required for a wide range of global sub-systems.

To meet diverse mechanical requirements, options include:

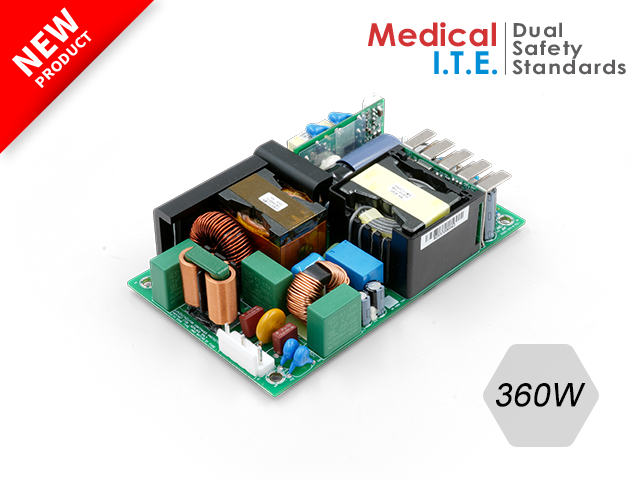

• HBA360: Standard open-frame

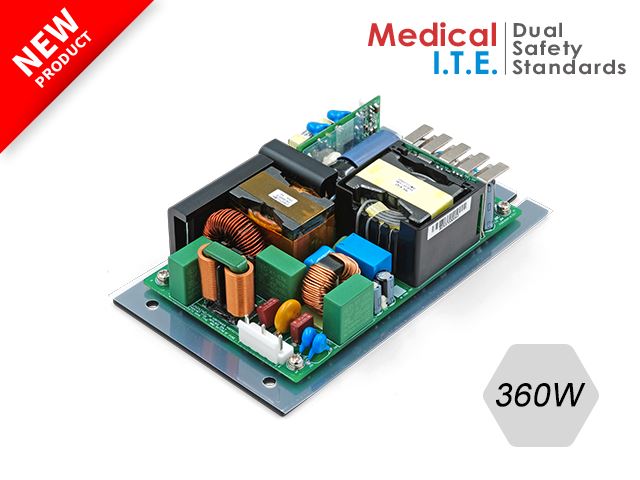

• HBA360P: U-chassis version

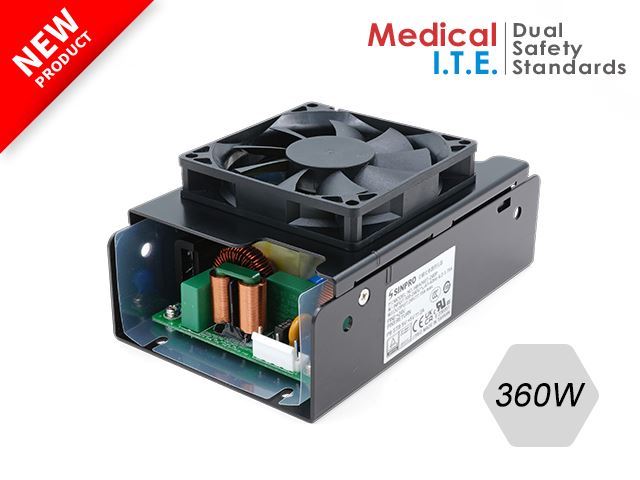

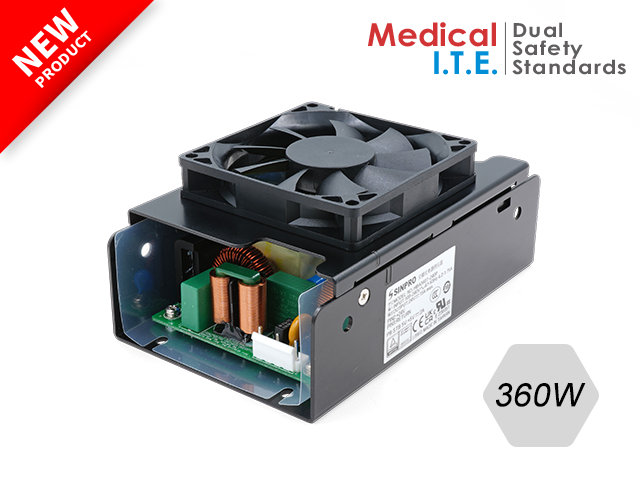

• HBA360T: Fully encased model with an integrated top fan

• Compact 5"x 3" footprint:
  At a low of 1.27” (32.2mm) profile maximizes power density, providing critical design flexibility for slim surgical displays and space-constrained enclosures.

• 450W Peak Power:
  Specifically designed transient response to sustain high starting currents for motor-driven medical equipment and stage lighting without voltage dips.

• High-Efficiency Thermal Management:
  Delivers a full 360W with forced air and 200W via natural convection, optimized for a wide industrial temperature range of -30°C to +85°C.

• Dual Safety & BF Readiness:
  Certified to IEC 60601-1 and IEC 62368-1 with 2 × MOPP isolation and low leakage current, ensuring full suitability for patient-contact (BF) medical applications.

• OVC III:
  Specifically engineered with enhanced clearance and creepage to meet Overvoltage Category III requirements, allowing for direct, safe installation into building-level electrical distribution and industrial control panels.

• Multi-Standard Compliance:
  Designed to meet IEC 60335-1 for household/commercial appliances and IEC 61558-1 for safety transformers, simplifying global certification for the end-equipment.

• ISN Compliant Design:
  Optimized for Information Systems Networks, ensuring low conducted emissions and high signal integrity for sensitive laboratory communication and data-heavy diagnostic applications.

• Smart System Integration:
  Includes a 5VDC Standby supply and Remote On/Off control as standard features to support energy-efficient "Green" equipment architectures.

• Mission-Critical Reliability:
  Enhanced surge immunity (up to 4kV) protects sensitive medical electronics against power line disturbances in harsh clinical or industrial environments.

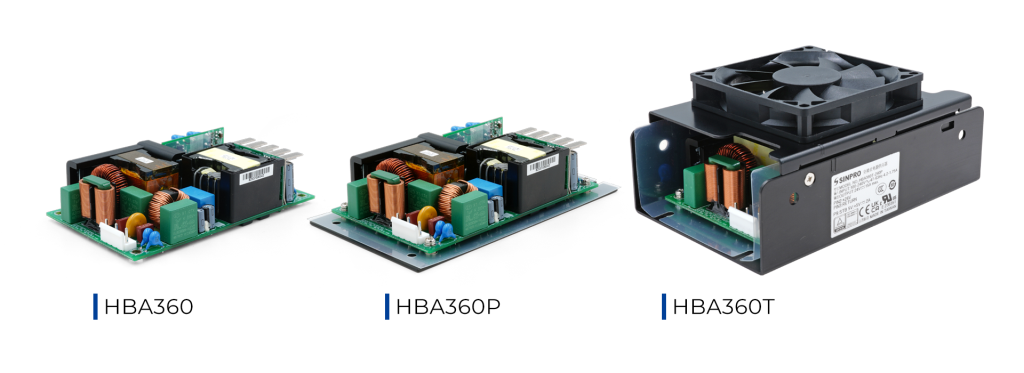

• Versatile Mechanical Form Factors:
  Available in three configurations—Open Frame, U-Chassis (HBA360P), or Top Fan Enclosure (HBA360T)—to suit any thermal or mounting strategy.

• 3-Year Warranty:
  Guaranteed long-term performance and reliability backed by Sinpro’s quality assurance.
