HBA600

HBA600|600W Medical & I.T.E. Open-Frame Switching Power Supplies

The HBA600 is a high-density 3"x 5" open frame power solution engineered for critical equipment that demands peak performance in a low-profile footprint. Delivering a full 600W with forced-air cooling and a silent 250W via natural convection, this series is the definitive power hub for next-generation medical systems and industrial automation.

Model No. Output Voltage (VDC) Output Current (A) Max. Output Power (W) Safety Approvals
Model No.:HBA600-120 Output Voltage (VDC):12 Output Current (A):Free Air: 20.83 / Forced Air: 50 Max. Output Power (W):600 下载 :More
Model No.:HBA600-120P Output Voltage (VDC):Vo: 12 / Standby: 5 Output Current (A):Free Air: 20.83 / Forced Air: 50 / Standby: 2 Max. Output Power (W):600 下载 :More
Model No.:HBA600-190 Output Voltage (VDC):19 Output Current (A):Free Air: 13.15 / Forced Air: 31.5 Max. Output Power (W):600 下载 :More
Model No.:HBA600-190P Output Voltage (VDC):Vo: 19 / Standby: 5 Output Current (A):Free Air: 13.15 / Forced Air: 31.5 / Standby: 2 Max. Output Power (W):600 下载 :More
Model No.:HBA600-240 Output Voltage (VDC):24 Output Current (A):Free Air: 10.41 / Forced Air: 25 Max. Output Power (W):600 下载 :More
Model No.:HBA600-240P Output Voltage (VDC):Vo: 24 / Standby: 5 Output Current (A):Free Air: 10.41 / Forced Air: 25 / Standby: 2 Max. Output Power (W):600 下载 :More
Model No.:HBA600-480 Output Voltage (VDC):48 Output Current (A):Free Air: 5.20 / Forced Air: 12.5 Max. Output Power (W):600 下载 :More
Model No.:HBA600-480P Output Voltage (VDC):Vo: 48 / Standby: 5 Output Current (A):Free Air: 5.20 / Forced Air: 12.5 / Standby: 2 Max. Output Power (W):600 下载 :More
Model No.:HBA600P-120 Output Voltage (VDC):12 Output Current (A):Free Air: 20.83 / Forced Air: 50 Max. Output Power (W):600 下载 :More
Model No.:HBA600P-120P Output Voltage (VDC):Vo: 12 / Standby: 5 Output Current (A):Free Air: 20.83 / Forced Air: 50 / Standby: 2 Max. Output Power (W):600 下载 :More
Model No.:HBA600P-190 Output Voltage (VDC):19 Output Current (A):Free Air: 13.15 / Forced Air: 31.5 Max. Output Power (W):600 下载 :More
Model No.:HBA600P-190P Output Voltage (VDC):Vo: 19 / Standby: 5 Output Current (A):Free Air: 13.15 / Forced Air: 31.5 / Standby: 2 Max. Output Power (W):600 下载 :More
Model No.:HBA600P-240 Output Voltage (VDC):24 Output Current (A):Free Air: 10.41 / Forced Air: 25 Max. Output Power (W):600 下载 :More
Model No.:HBA600P-240P Output Voltage (VDC):Vo: 24 / Standby: 5 Output Current (A):Free Air: 10.41 / Forced Air: 25 / Standby: 2 Max. Output Power (W):600 下载 :More
Model No.:HBA600P-480 Output Voltage (VDC):48 Output Current (A):Free Air: 5.20 / Forced Air: 12.5 Max. Output Power (W):600 下载 :More
Model No.:HBA600P-480P Output Voltage (VDC):Vo: 48 / Standby: 5 Output Current (A):Free Air: 5.20 / Forced Air: 12.5 / Standby: 2 Max. Output Power (W):600 下载 :More
Model No.:HBA600P-480P Output Voltage (VDC):Vo: 48 / Standby: 5 Output Current (A):Free Air: 5.20 / Forced Air: 12.5 / Standby: 2 Max. Output Power (W):600 下载 :More
Model No.:HBA600T-120 Output Voltage (VDC):12 Output Current (A):50 Max. Output Power (W):600 下载 :More
Model No.:HBA600T-120P Output Voltage (VDC):Vo: 12 / Standby: 5 Output Current (A):Vo: 50 / Standby: 2 Max. Output Power (W):600 下载 :More
Model No.:HBA600T-190 Output Voltage (VDC):19 Output Current (A):31.5 Max. Output Power (W):600 下载 :More
Model No.:HBA600T-190P Output Voltage (VDC):Vo: 19 / Standby: 5 Output Current (A):Vo: 31.5 / Standby: 2 Max. Output Power (W):600 下载 :More
Model No.:HBA600T-240 Output Voltage (VDC):24 Output Current (A):25 Max. Output Power (W):600 下载 :More
Model No.:HBA600T-240P Output Voltage (VDC):Vo: 24 / Standby: 5 Output Current (A):Vo: 25 / Standby: 2 Max. Output Power (W):600 下载 :More
Model No.:HBA600T-480 Output Voltage (VDC):48 Output Current (A):12.5 Max. Output Power (W):600 下载 :More
Model No.:HBA600T-480P Output Voltage (VDC):Vo: 48 / Standby: 5 Output Current (A):Vo: 12.5 / Standby: 2 Max. Output Power (W):600 下载 :More
Type File Name Download
Type:Safety Instructions File Name:Important Safety Instructions Download : Download
Type:Datasheet File Name:SINPRO-HBA600-DATASHEET Download : Download
Type:Safety Certificate File Name:SINPRO-HBA600-TUV(MED3.2) Download : Download
Type:Safety Certificate File Name:SINPRO-HBA600-TUV(62368) Download : Download
Type:Safety Certificate File Name:SINPRO-HBA600-cULus(MED3.2) Download : Download
Type:Safety Certificate File Name:SINPRO-HBA600-cULus(62368 Ed.4) Download : Download
Type:Safety Certificate File Name:SINPRO-HBA600-CB(M3.2) Download : Download
Type:Safety Certificate File Name:SINPRO-HBA600-CB(6238 Ed.4) Download : Download

HBA600 600W Medical & I.T.E. Open-Frame Switching Power Supplies

Product Features

  • 600W Fan cooled / 250W Convection Cooled
  • 3.00" × 5.00" × 1.27" / 31.5 W/in³
  • IEC 60601-1 (Medical), IEC 62368-1 (ITE) dual safety approvals
  • 85-264 VAC Input Voltage
  • -30°C to +85°C Operating Temperature
  • Efficiency up to 95%
  • Input to Output 2MOPP
  • Suitable for BF Application
  • Power Good Signal
  • Remote Sense
  • AUX 12V Fan output

Optional

  • 5V Standby + Remote ON-OFF / Enhanced Surge Immunity
  • Support DC input 120-370 VDC
  • Meets IEC 60335-1 and 61558-1
  • Support and meets OVC III and ISN compliants

Description

The HBA600 is a high-density 3"x 5" open frame power solution engineered for critical equipment that demands peak performance in a low-profile footprint. Delivering a full 600W with forced-air cooling and a silent 250W via natural convection, this series is the definitive power hub for next-generation medical systems and industrial automation.

Designed to meet the most stringent global standards, the HBA600 is certified for Type BF medical applications and OVC III industrial systems. Its ability to comply with IEC 60335 and 61558 allows for seamless integration into household-adjacent medical tech and building infrastructure. With a wide operating temperature range of -30°C to +85°C and a 5000M altitude rating, the HBA600 ensures total reliability in the most challenging operational environments.

Beyond its raw power, the HBA600 provides sophisticated system protection and flexibility. The series features a comprehensive suite of safeguards including SCP, OLP, OVP, and OTP to ensure stable performance in volatile specialized environments. Available in 12V, 19V, 24V, and 48V VDC output configurations, the HBA600 offers the high-wattage versatility required to drive everything from precision ECG monitors to high-capacity nucleic acid extraction systems.

To meet diverse mechanical requirements, options include:

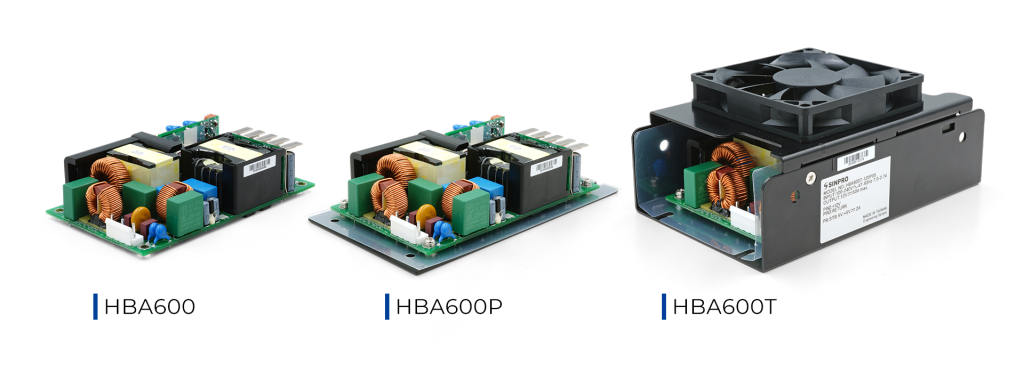

HBA600 series, 600W Medical & I.T.E. Open-Frame Switching Power Supplies

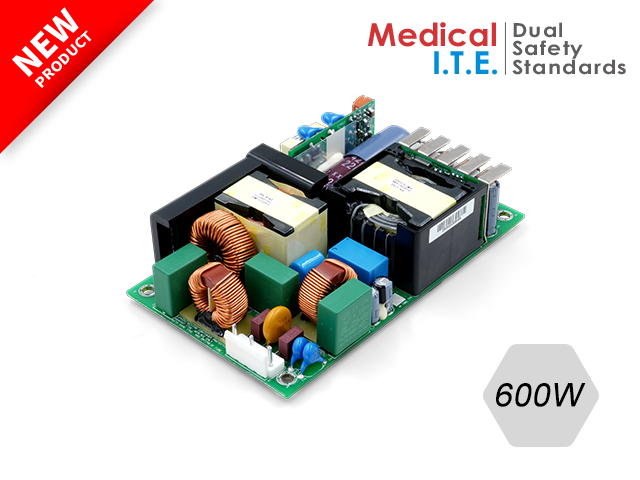

• HBA600: Standard open-frame model

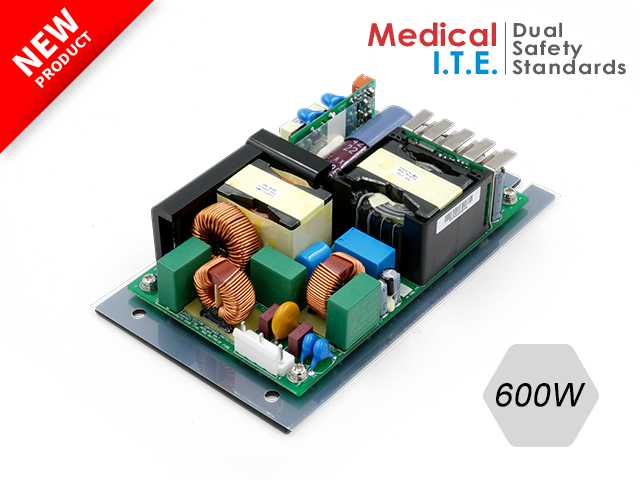

• HBA600P: U-chassis version

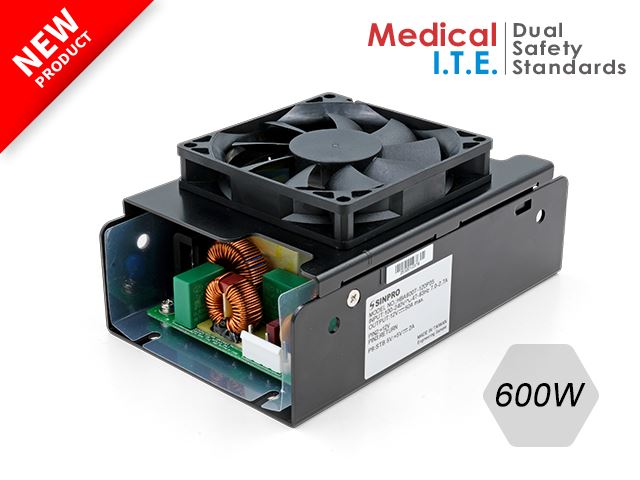

• HBA600T: Fully encased model with an integrated top fan

Features & Highlights

  • Compact 5"x 3" footprint
    At a low of 1.27" (32.2mm) profile maximizes power density, providing critical design flexibility for high-capacity Nucleic Acid Extraction Systems and high-resolution medical imaging monitors.

  • 450W Peak Power
    Specifically designed transient response to sustain high starting currents for motor-driven medical equipment and stage lighting without voltage dips.

  • High-Efficiency Thermal Managemen
    Delivers a full 600W with forced air and 250W via natural convection, optimized for a wide industrial temperature range of -30°C to +85°C.

  • Dual Safety & BF Readiness
    Certified to IEC 60601-1 and IEC 62368-1 with 2 × MOPP isolation and low leakage current, ensuring full suitability for patient-contact (BF) medical applications such as ECG and phototherapy equipment.

  • OVC III
    Specifically engineered with enhanced clearance and creepage to meet Overvoltage Category III requirements, allowing for direct, safe installation into building-level electrical distribution and industrial control panels.

  • Multi-Standard Compliance
    Designed to meet IEC 60335-1 for household/commercial appliances and IEC 61558-1 for safety transformers, simplifying global certification for the end-equipment.

  • ISN Compliant Design
    Optimized for Information Systems Networks, ensuring low conducted emissions and high signal integrity for sensitive laboratory communication and data-heavy diagnostic applications.

  • Smart System Integration
    Includes a 5VDC Standby supply and Remote On/Off control as standard features to support energy-efficient "Green" equipment architectures.

  • Mission-Critical Reliability
    Enhanced surge immunity (up to 4kV) protects sensitive medical electronics against power line disturbances in harsh clinical or industrial environments.

  • Versatile Mechanical Form Factors
    Available in three configurations—Open Frame, U-Chassis (HBA600P), or Top Fan Enclosure (HBA600T)—to suit any thermal or mounting strategy.

  • 3-Year Warranty
    Guaranteed long-term performance and reliability backed by Sinpro’s quality assurance.
